Application State

In RaftCore, RaftApp and RaftLogStore are especially important because these two compose the application state. This section explains the conceptual aspect of it.

RaftApp

RaftApp is an abstraction that represents the FSM (Finite State Machine) of the application and the snapshot repository. The snapshot repository isn't separated because the contents of the snapshot is strongly coupled with the application state.

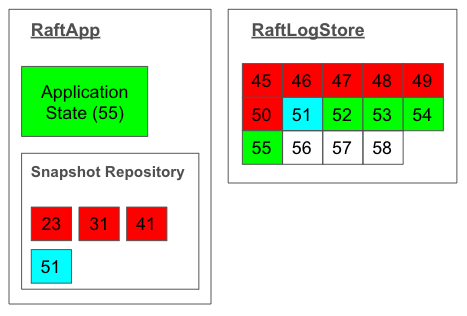

The application state can be updated by applying the log entries. In this figure, the last applied entry is of index 55.

RaftApp can generate a snapshot arbitrarily to compact the log. When RaftApp makes a snapshot and stores it in the snapshot repository. The latest snapshot is immediately picked up by the Raft process and it manipulates the log (right in the figure) by replacing the snapshot entry. In this figure, the snapshot index is 51.

Old snapshots will be garbage collected.

Snapshots may be fetched from other nodes. This happens when the Raft process is far behind the leader and the leader doesn't have the log entries as they are garbage collected.

RaftLogStore

RaftLogStore is an abstraction that represents the log entries. In the figure, log entries from 45 to 50 are scheduled for garbage collection. snapshot entry is of index 51 and it is guaranteed that the corresponding snapshot exists in the snapshot repository. 52 to 55 are applied. 56 or later are not applied yet. They are either uncommitted or committed.
